12V/24V/48V Smart Wind Solar Hybrid Controller, 2000W-12000W, LCD Display, MPPT Multifunctional Off Grid Wind Solar Controller, Renewable Energy Controller (48v 12000w)

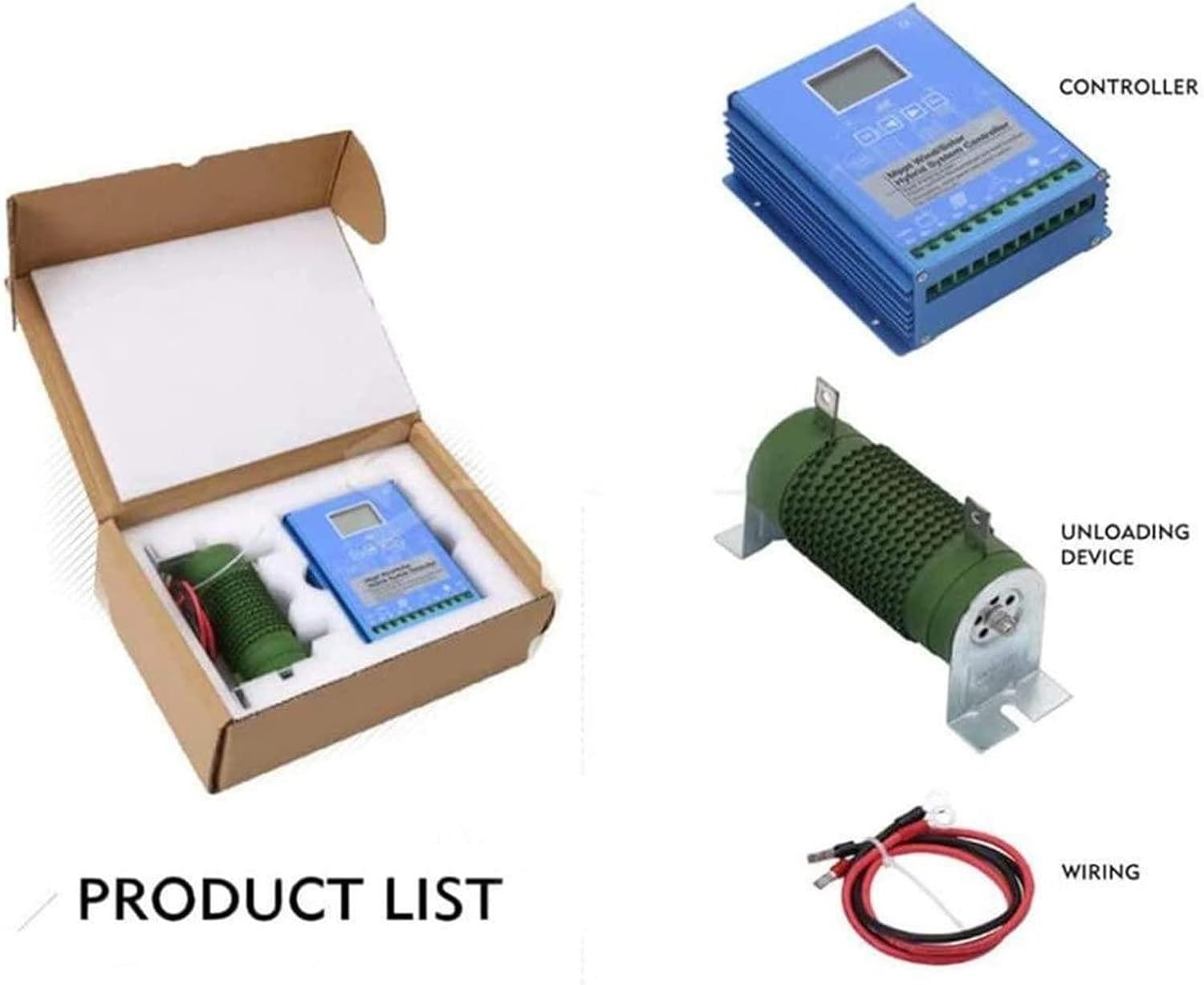

Wind-solar hybrid street light controller is designed for small off-grid devices where wind turbines and solar panels can charge batteries safely and efficiently. Of course, with some simple settings, the controller can also be used in home systems. SPECIFICATIONS: -System rated voltage: 12V/24V/48V -No-load current (DC): ≤0.05A -Controller power supply mode: battery or photovoltaic panel -Control method: fan MPPT boost, PWM unloading, PWM overcurrent -Load: Multiple working mode options: pure light control mode, normally open mode, light control + time control mode (four periods + morning light) -Display mode: LCD display -Display parameters: voltage, battery power, current, power, load mode, temperature, etc. -Heat dissipation method: aluminum profile heat dissipation and self-cooling -Operating temperature and humidity range: - 20~+55℃/35~85%RH (no condensation) PACKAGING LIST: 1x Wind Solar Hybrid Charge Controller

• WIND SOLAR HYBRID CHARGE CONTROLLER: The Upgraded charging part of the wind turbine adopts boost MPPT technology, which enables it to charge continuously and efficiently even at low wind speeds. Stepless discharge function, including external dump charging resistor. Solar panel charging adopts PWM technology, through series MOS tube.
• LCD SCREEN & 3 OUTPUT MODES: The larger LCD screen design is convenient for browsing and operation, displaying parameters such as voltage, battery power, current, power, load mode, temperature, etc. There are 3 output modes for DC load, and each mode can be set differently.
• PROTECTIONS: This controller has solar reverse connection protection, overcharge, undervoltage and overload protection, battery reverse connection and open circuit protection, lightning protection, etc.
• SMART STABLE: After selecting the battery type, the parameters will be set perfectly. Users can also customize it according to their needs. The system has been upgraded to be more intelligent and the charging voltage control is absolutely stable.
• APPLICABLE: This charge controller is suitable for all 12V ,24V or 48V batteries, including lithium batteries. Suitable for wind turbines and solar panels, suitable for wind and solar hybrid systems for houses, ships and street lights.
